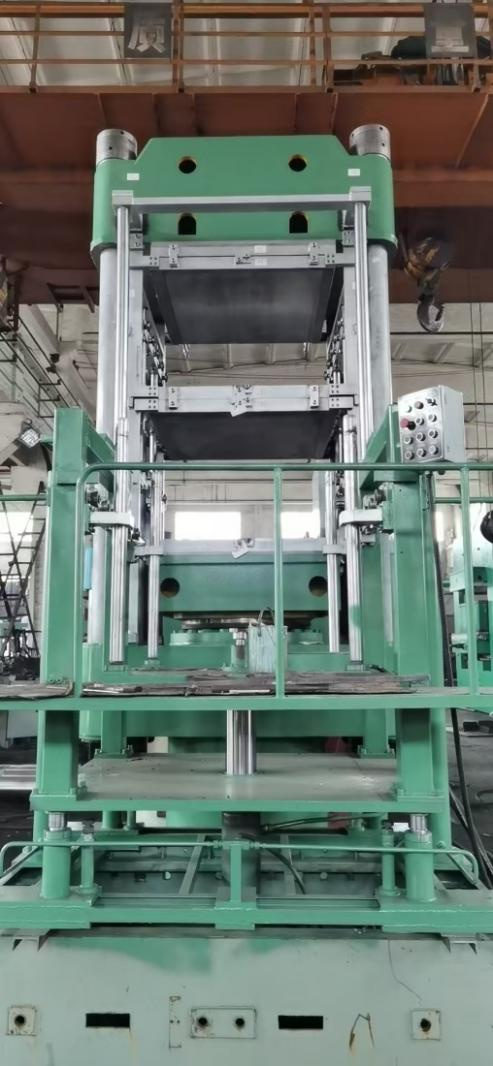

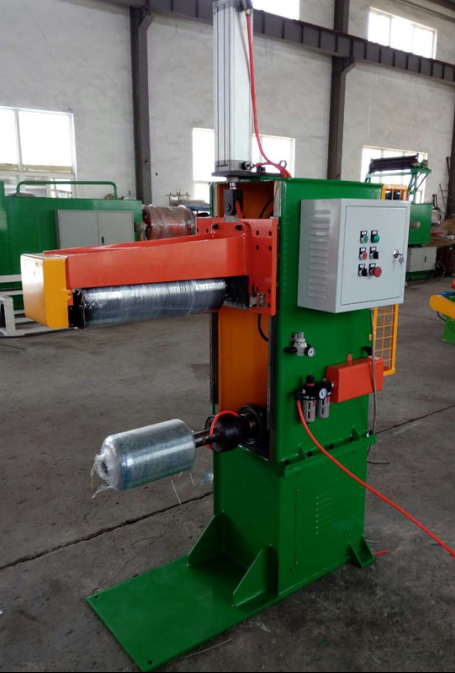

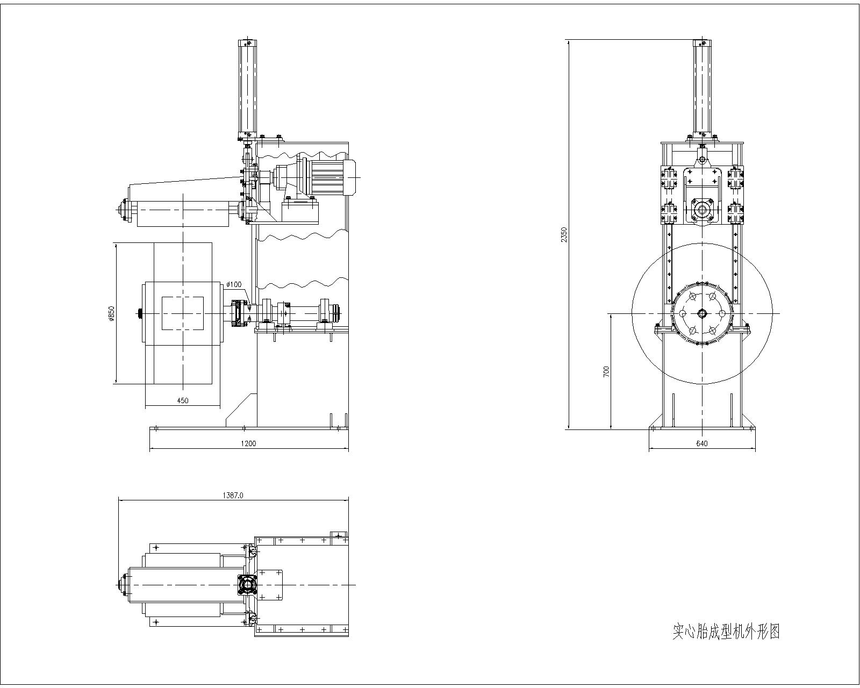

实心胎多层硫化机

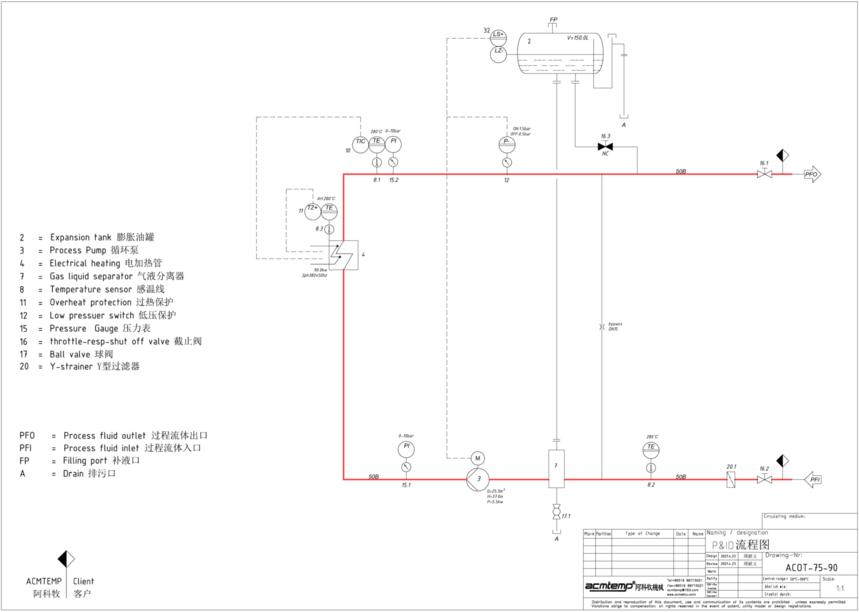

serial number

type

Specific parameters

1

model

ACOT-75-75

2

Electric power parameters

Power supply: 3φ 380v 50hz+PE

Total power: 80.5KW

Total current: 148.2A

3

Heat transfer medium

Alkyl benzene type heat transfer oil ( Shounuo T55)

4

Control mode

4.3-inch full color capacitive screen+integrated temperature control board

5

Temperature control accuracy

PID  ±1℃

6

Temperature control range

Normal temperature+45℃ ~ 280℃

7

Heating parameters

Power: 75KW

Mode: direct heating

8

Cooling parameters

Area: None

Mode: \

9

recycle pump

Model: RYD65-40-200A

Motor power: 5.5KW

Lift: 37.0m

Flow rate: 25.0 m/h

10

Interface parameters

Hot oil outlet: flange HG/T20592 PL50/RF PN16.

Hot oil return port: flange HG/T20592 PL50/RF PN16

Expansion nozzle: flange HG/T20592 PL25/RF PN16.

Oil discharge nozzle: Rc1/2 "

11

Temperature control adjustment parameters

Adjustment action: heating PID control

Temperature sensor: K thermocouple

Data display mode: set value and actual value are displayed separately.

Output type: relay output

12

Safety protection

Over-temperature: the heater temperature exceeds the upper limit. Air switch-trip cuts off the main power supply.

Power phase inversion: power phase detection prevents pump

inversion and gives an alarm indication.

Motor overload: thermal relay protects motor overload and gives alarm indication.

Media shortage protection: the liquid level switch detects the oil level in the oil tank to prevent media shortage and gives an alarm indication.

Abnormal heating: the contactor is stuck, and the abnormal heating alarm and indication are given.

Pipeline blockage: when the temperature difference between inlet and outlet oil temperature exceeds the upper limit, it will automatically give an alarm and raise it.

Abnormal pressure: If the system pressure is abnormal, the heating action will automatically stop.

Exhaust: Manual exhaust function when the equipment is turned on.

13

Heat transfer oil capacity of equipment

Pipeline volume: 35L

Expansion oil tank: external oil tank with total volume of 150L.

14

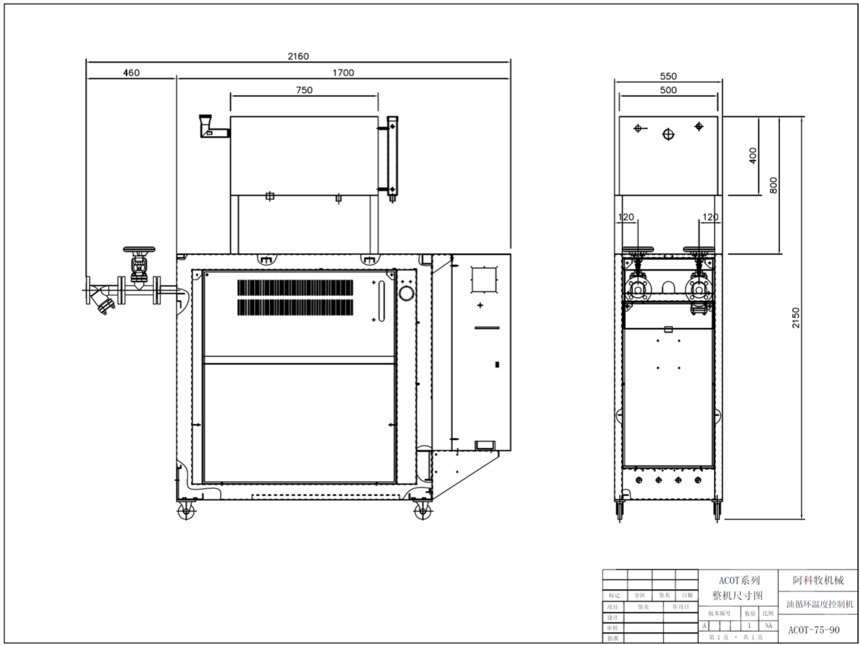

Outline reference dimension

Shell: length 1700mm* width 550mm* height 2150mm(620kg)

Configuration parameter table

mechanical part

serial number

Fitting name

specifications and models

unit

quantity

brand

1

Hot oil circulating pump

RYD65-40-200A 5.5KW

platform

1

Akemu OEM

2

Electric heating tube

75KW 6 inch 400V

strip

1

Akemu OEM

3

thermocouple

K type

branch

2

Taiwan Province Minyang

4

pressure switch

MGP503

individual

1

Akemu OEM

5

liquid level switch

SLH series single floating ball

individual

1

Shanghai Sipai

6

German standard corrugated pipe stop valve

DN50

individual

2

Akemu OEM

7

German standard filter

DN50

individual

1

Akemu OEM

8

External fuel tank

150L

platform

1

Akemu machinery

Electrical appliance part

1

Plastic shell is open

3VM1S250 200A

individual

1

Siemens Germany

2

Heating contactor

3RT6026-1AN20 25A

individual

10

Siemens Germany

3

Pump contactor

3RT6025-1AN20 17A

individual

1

Siemens Germany

4

Pump thermal overload

3RU6126-4AB0 11-16A

individual

1

Siemens Germany

5

circuit breaker

2P6A

individual

1

Siemens Germany

6

controller

4.3-inch full-color capacitive screen

set

1

Akemu OEM

7

Over temperature thermostat

AI207

individual

2

Xiamen Yudian

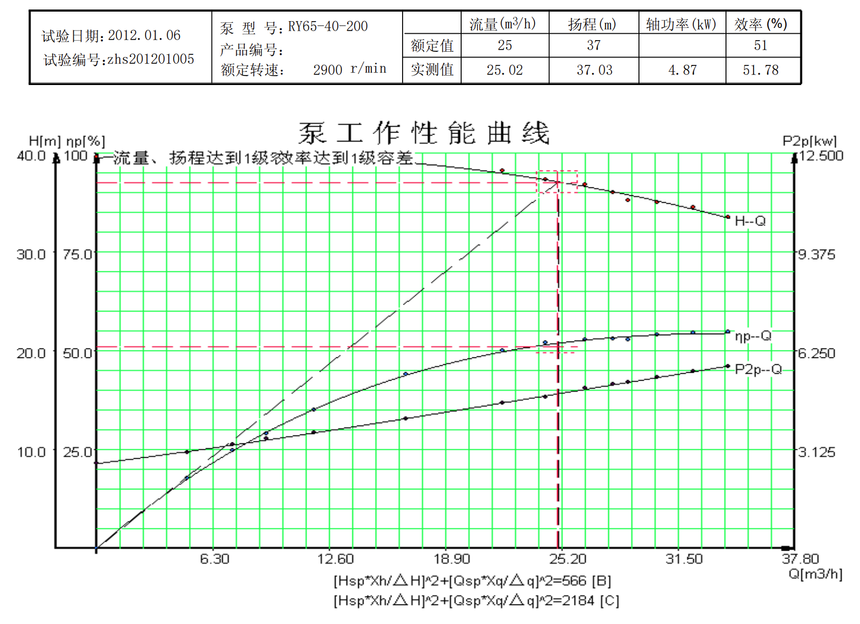

1， It is suggested that the pump should choose the working point: the flow rate is 25 cubic meters per hour and the lift is 37 meters;

2， The performance curve corresponds to the normal transportation speed of oil at 20 degrees. The error between head and flow is 10%, and the performance error is 10%;

3， The performance of the pump varies with the specific gravity and density of the conveying fluid medium;

4， The above curve is that the pump inlet is not less than DN65；; The export is not less than DN40;

IV. Necessary conditions to be provided at the installation site

1, water pressure and water quality:

The water heater with cooling function must provide cooling water at the use site, and the water pressure requirement is 0.15-0.3Mpa.

In order to prevent damage to the heat exchanger built in the heater due to blockage, water must meet the following requirements:

For water with quality deviation, we suggest consulting professional service units or conducting water quality analysis. Equipment failure or damage caused by water quality problems is not covered by the warranty. When the cooling function is used below 10℃, antifreeze must be added to the chilled water!

2. Power cord connection:

The power cord needs to use 3*70.0mm2+1*25.0mm2 cable, which shall be provided by the buyer, and the power cord must be grounded!

3. Heat medium: Shounuo T55 heat transfer oil.

4. Working environment:

The working environment temperature of the equipment is 18℃-40℃; Relative humidity: 50%-80% to ensure good ventilation; Temperature difference: 4℃/h, the equipment works 7 days a week and 24 hours a day.

Total volume of mixing chamber (L)

250

Working volume of mixing chamber (L)

110

Driving motor power (KW)

AC,185KW

Tilting motor power (KW)

4

Tilting angle (°)

140

Rotational speed of the rotor (front/rear) r/min

30/24.5

Pressure of compressed air (MPa)

0.6---0.8

Capacity of compressed air(m3/min)

>=1.5

Pressure of cooling water (MPa)

0.3-0.4

Pressure of heating steam(plastic mixing) MPa

0.5-0.8

Overall dimension(length x width x height)(mm)

3930x 3000 x3660

Weight

14500kgs

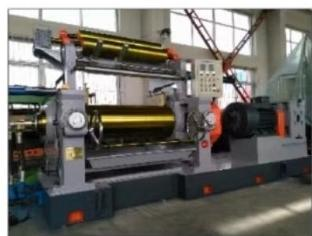

Roller type

(chilled cast iron rolls:68-72HSD)

22°×60"  0550X1530 mm

Velocity ratio of rollers(front: rear)

1:1.22

Liner velocity of front roller

28

Nip adjustment

Way

Electric

Range(mm)

0.5-15

Feeding Capacity once(kgs)

50--65

Main motor power(kw)

110

Gear box and shaft connection ways

Single output shaft

Pressure of safety disc(KN)

1100±30

Overall dimension(length x width x height)(mm)

5630×3500×2480

Weight

~23500kgs
